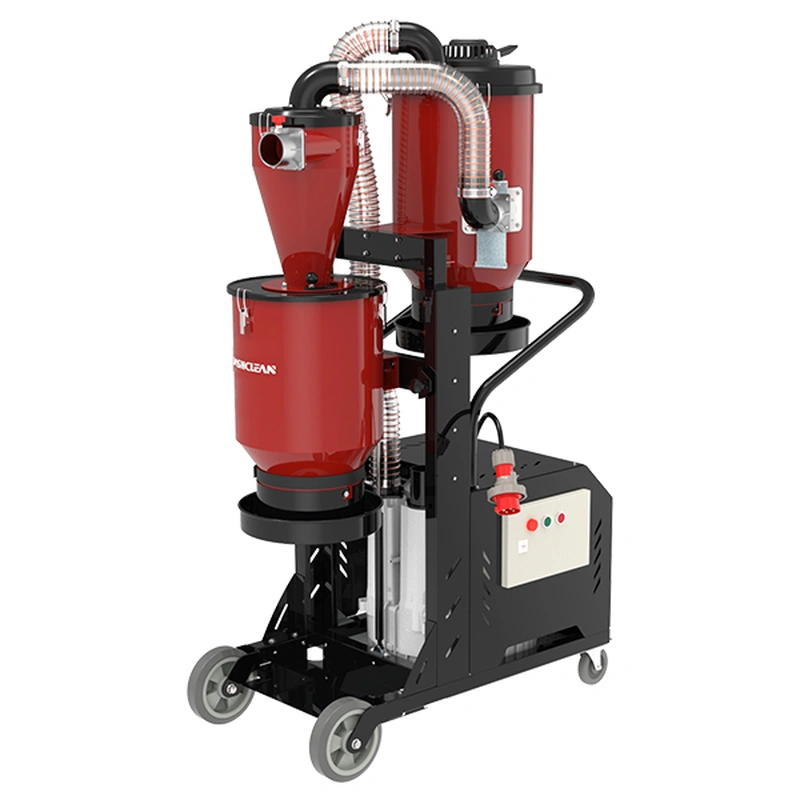

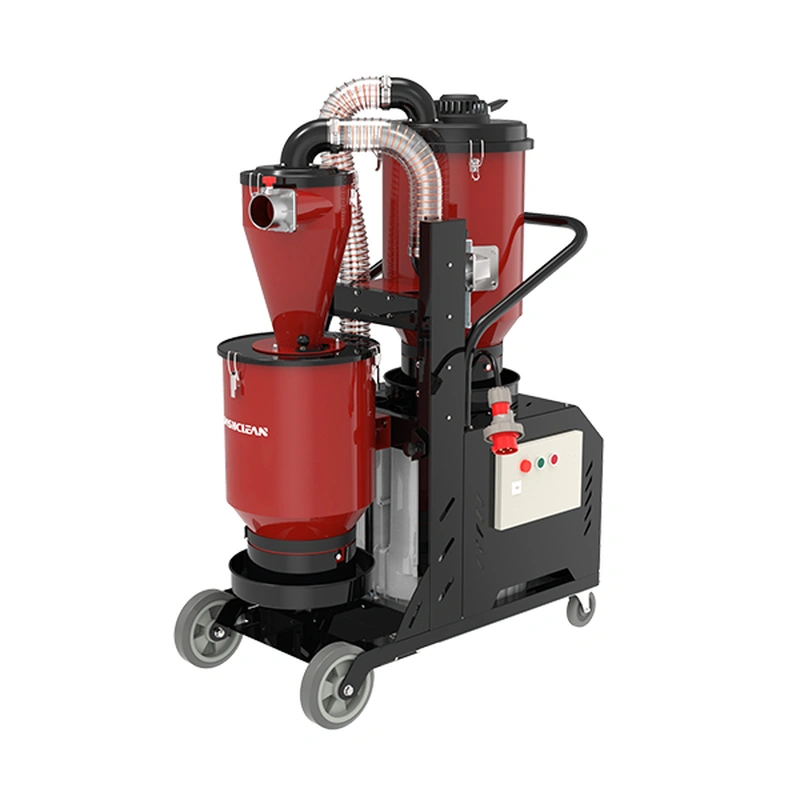

T43 Dust Extractor & Separator Combo

Model: T43

Motor: 3 Phase, 5.5kw, 380v

Amps: 12.9

Air Flow: 530 m³/h

Vacuum: 300 mbar

Filter: 3.2 m², >99.5% @1.0 um

Weight: 161.5 kg

Dimensions: 99.5 x 55.5 x 176.5 cm(up)  /  39 x 22 x 69.5 cm(down)

Description

T43 is a three-phase, HEPA dust extractor. Equipped with a powerful turbine motor.


Integrated with a pre-separator and a dust extractor in a same frame, the dust extractor & separator combo is developed to support mid/large size concrete grinder and polishing machine, for picking up voluminous dust.


The built-in separator screens out more than 95% of dust and leaves only a small amount of fine dust for the dust extractor to filter. The pre-separator significantly improves the filter performance and reduces frequency of filter maintenance. It also contributes to a higher airflow and an extended lifetime of filters and motor.


T43 features height adjustment for the convenience of transportation. User can slide-down the overall height for a convenience of VAN loading.


T43 feature the Dashclean "reverse-air" jet-pulse system, which offers operators an effective way of cleaning filter. Optionally, they can be installed an alarm system which reminds operators, with an audible buzzer and visible fash LED, to clean filter.
