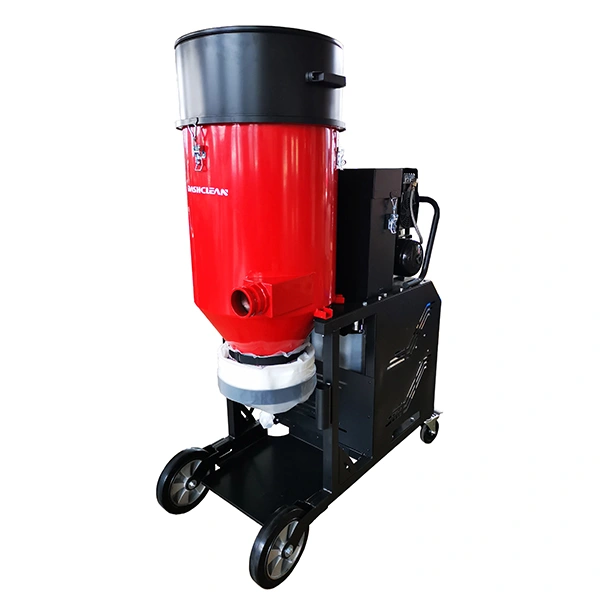

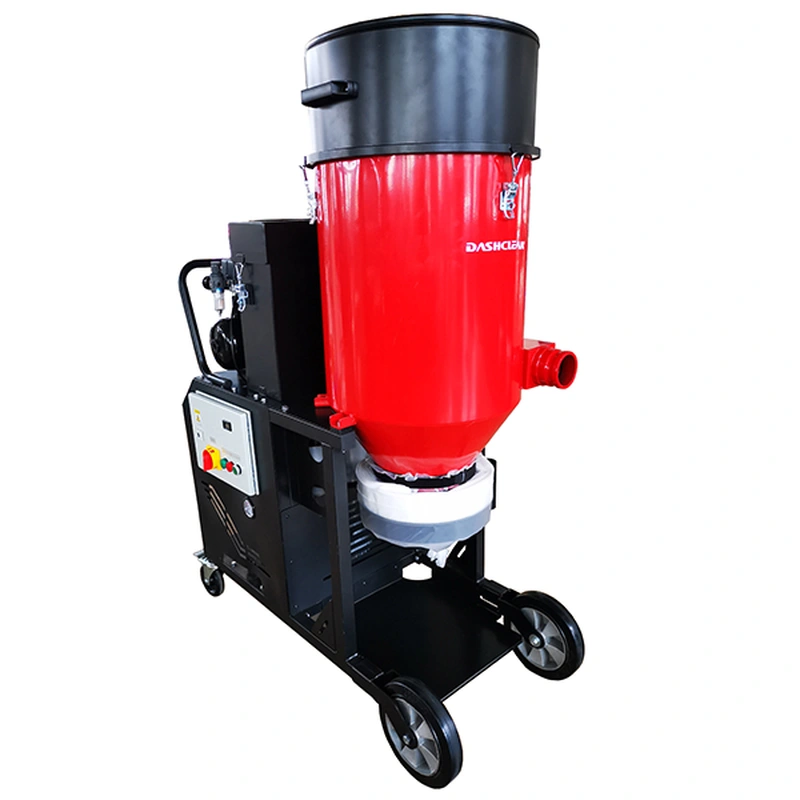

T62 Three-phase HEPA Dust Extractor

Model: T62

Motor: 3 Phase, 7.6kw/8.6kw, 380v/480v

Amps: 16.7

Air Flow: 700 m³/h

Vacuum: 270 mbar

Pre Filter: 7.6m², > 99.0% at 1.0 μm

HEPA Filter: 5.3 m² , > 99.99% at 0.3 μm

Weight: 168 kg

Dimensions: 120 x 60 x 160 cm

Description

T62 is a three-phase, HEPA dust extractor. It features plenty of power, large filter surface area, and fully automatic filter self-cleaning. T62 is designed to support medium to large grinding and polishing machines.


Equipped with a very powerful turbine motor, T62 delivers an exceptional airflow at 840m³/h. Its 2-stage filtering system includes 4 main filters with a large surface area total 7.6㎡ and 2 HEPA 5.3㎡. T62 exceeds the requirements of the most demanding three-head grinders.


With the two HEPA filters which are individually tested and certified, T62 separates 0.3um dust with an efficiency >99.99%, securing a high standard of quality and safety. T62 complys OSHA regulations for conrete dust handling.


T62 is equipped with a fully automatic self-cleaning system. Once it starts a vacuuming process, at its own, T62 automatically cleans the 4 main filters at a pre-progammed turn and frequency, preventing the filters from clogging.
