G28 Single-phase HEPA Dust Extractor

Model: G28

Motor: 1 Phase, 3.4kw, 230v

Amps: 10

Air Flow: 528 m³/h

Vacuum: 345 mbar

Pre Filter: 3.2 m², >99.5% @1.0 um

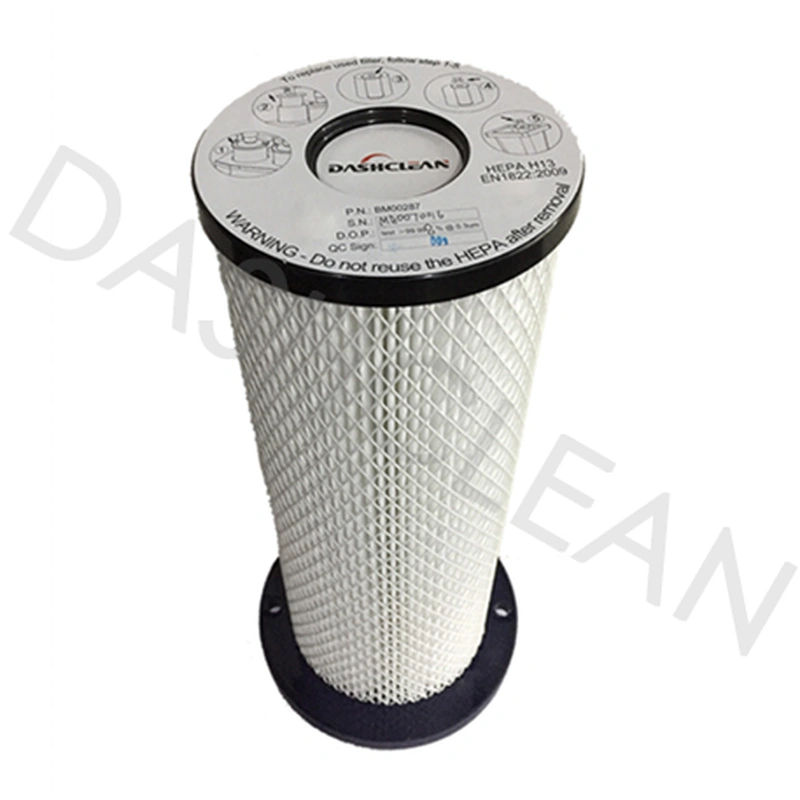

HEPA Filter: 2.4 m², >99.99% @0.3 um

Weight: 50 kg

Dimensions: 63 x 56 x 122 cm

Description

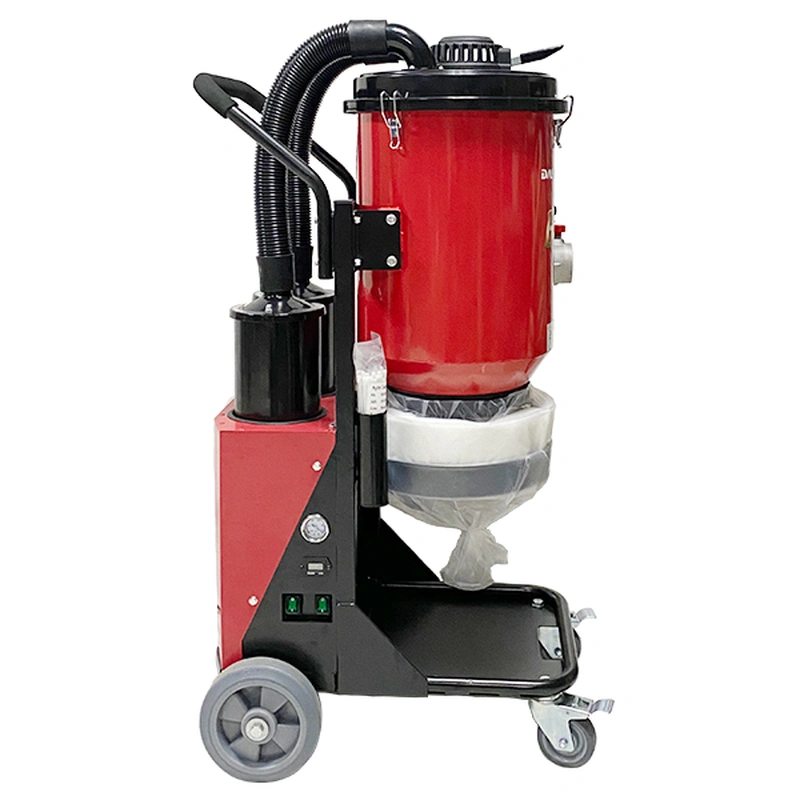

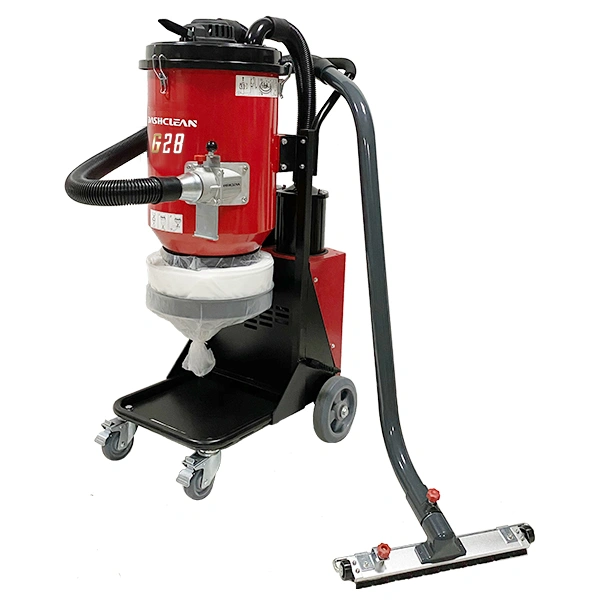

G28 is a powerful Single-phase HEPA dust extractor designed to match small concrete grinding machines, scarifiers and shot blasters as well as handheld power tools.

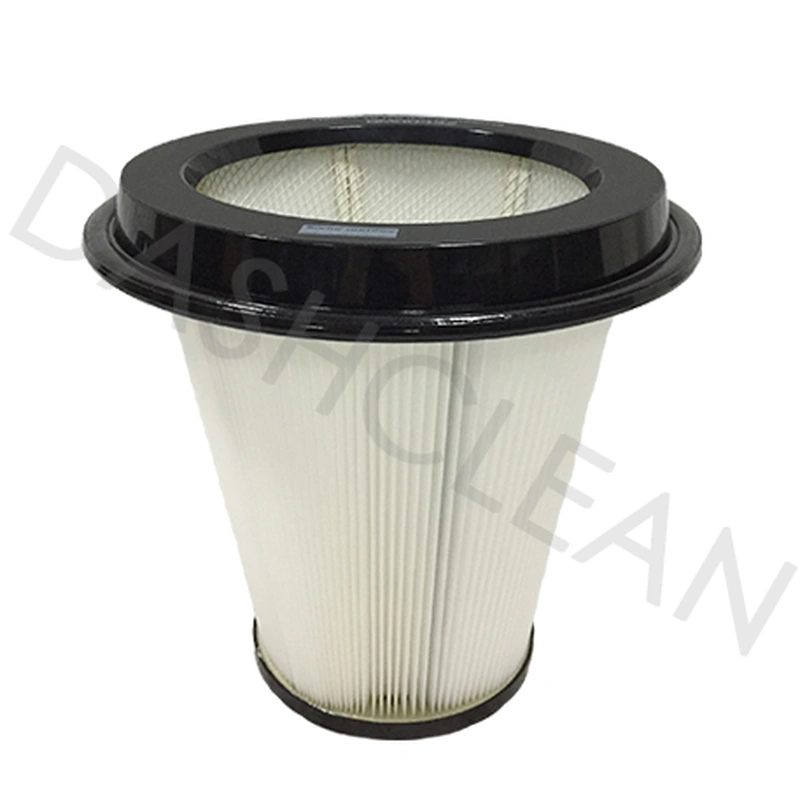

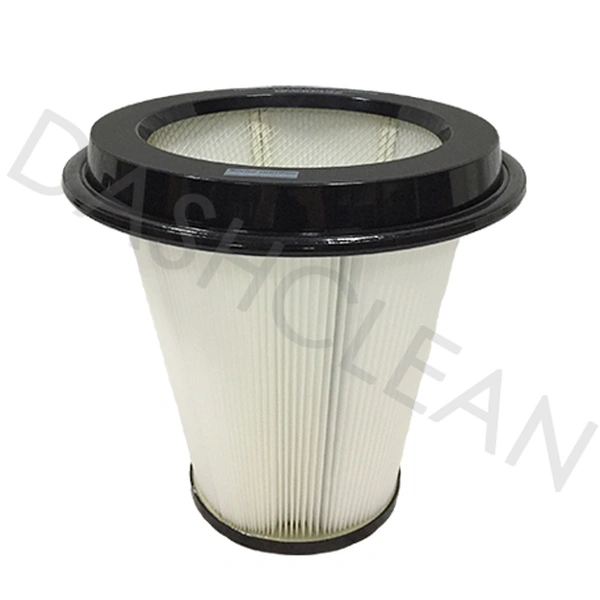

✦ The G28 is a 2-motor HEPA dust extractor, that features a two-stage filtering system comprised of one main conical filter and two HEPA filters

✦ HEPA filters remove at least 99.97% of airborne particles 0.3 micrometers (µm) in diameter. securing a high standard of quality and safety

✦ 2 Individual motor switches – provides variable suction strength and power

✦ Reverse-air jet-pulse filter cleaning system effectively cleans and removes dust build-up on the filters

✦ Easy to use inlet closure door eliminates the need to remove hoses when pulsing and cleaning filters

✦ Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding

✦ Equipped with a continuous-bag disposal system for effective dust collecting and safe & easy disposal of concrete dust
