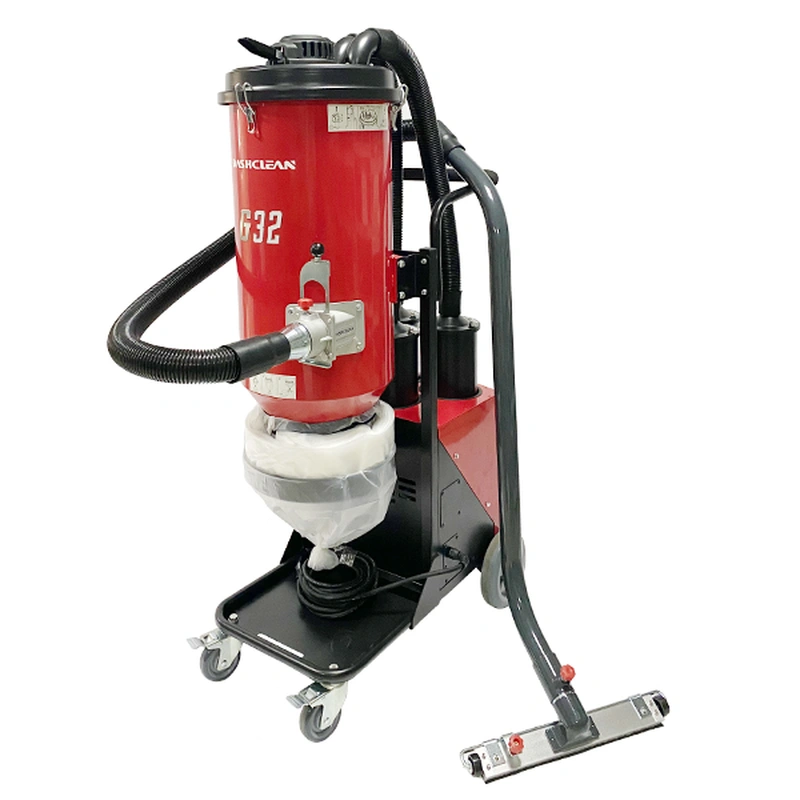

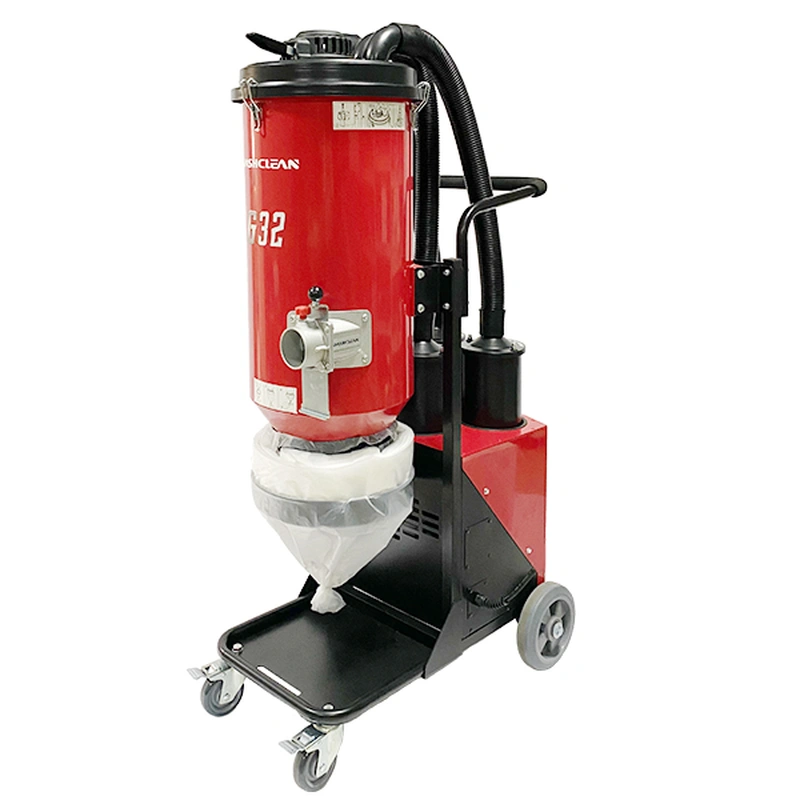

G32 Single-phase HEPA Dust Extractor

Model: G32

Motor: 1 Phase, 3.6kw, 230v

Amps: 12

Air Flow: 600 m³/h

Vacuum: 220 mbar

Pre Filter: 4.5m², >99.5% @1.0 um

HEPA Filter: 3.6m² >99.99% @0.3 um

Weight: 64 kg

Dimensions: 76 x 56 x 142 cm

Description

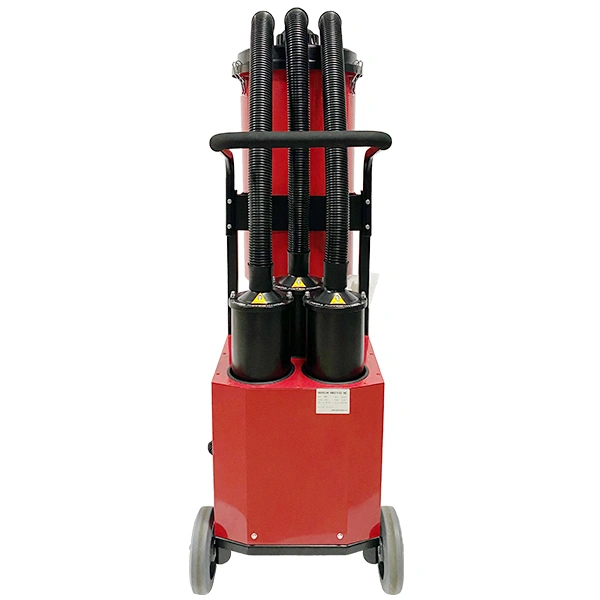

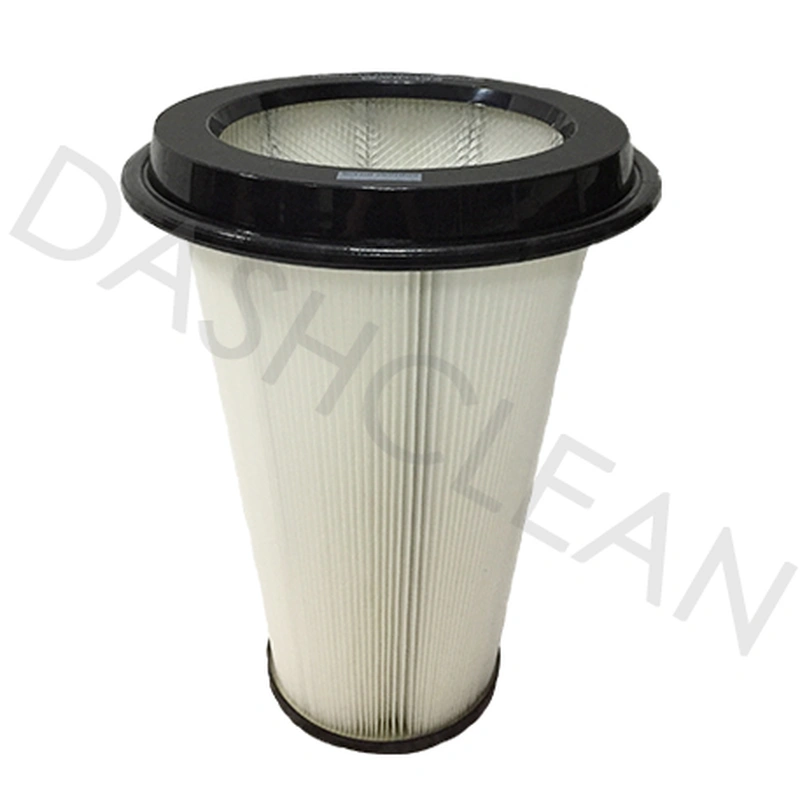

G32 is a three-motor HEPA dust extractor, which features a two-stage filtering system including a conical main filter and three HEPAs.

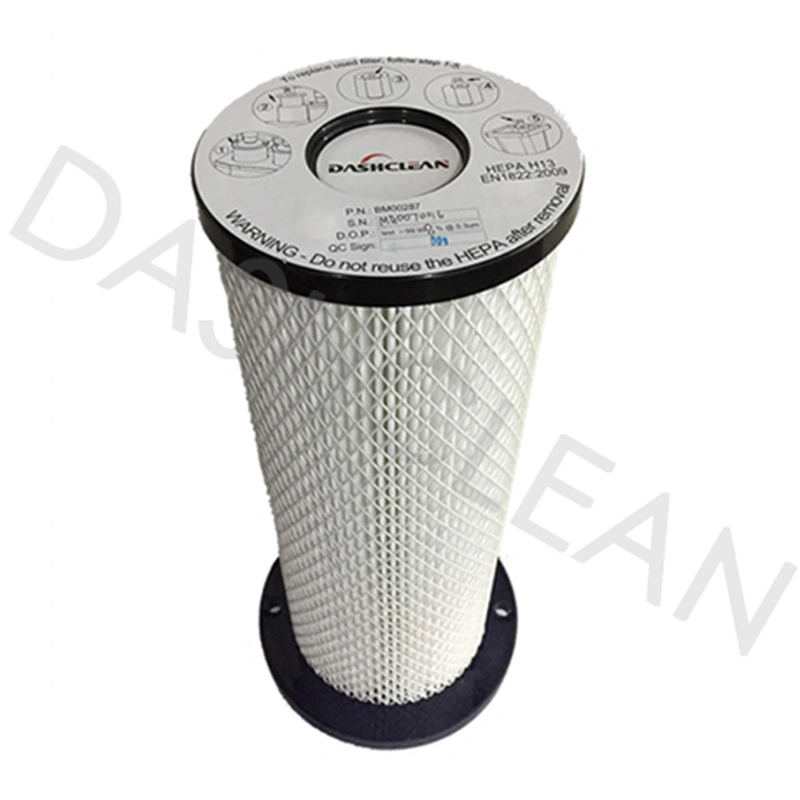

Equipped with three HEPA filters which are individually tested and certified complying H13 EN1822:2009, G32 separates 0.3um dust with an efficiency >99.99%, securing a high standard of quality and safety. G32 complys OSHA regulations for conrete dust handling.


With its unique “reverse-air” jet-pulse filter cleaning system, G32 cleans the filter in an easy and effective way. With the system, you don’t have to take the hose off the inlet and then block the inlet in order to conduct a filter cleaning, which usually creates another dust hazard. You just simply close the inlet by lifting the open/close handle before operating filter clean.


G32 comes with a complete floor cleaning tool kit, including a D50x7.5 meters hose, Aluminum “S” wand, crevice tool, floor brush, and etc. G32 provides a 30 Amp electric outlet to a grinder for the convenience (optional for 230v version only).


G32 is CE certificated. All electric components, including motor, switches, power cable, electric plug & receptacle, are UL and CUL/CSA certificated.
